Betta500

Betta500 powerful, cost effective and rugged solar area/security LED light solution

Applications

Security gates
External parking areas
Dark areas not on the grid
Government buildings for rural areas such as clinics
Schools and border posts
Military facilities
Bill boards.

Betta500 uses 500 LED diodes and has a light distribution of 130degrees. Illumination is 50 lux at 5 meters on the centreline. As a result the demonstrated area coverage per light is approximately 300-400sqm with a distance of 25 meters.

The system makes use of 4 x 22Ah 12Volt lead crystal batteries. These batteries can handle heat of up to 65 degrees C, can be depleted 100% and will take charge thereafter, it recharge 2 to 5 times quicker than other lead acid battery technologies with a life expectancy of 10 years.

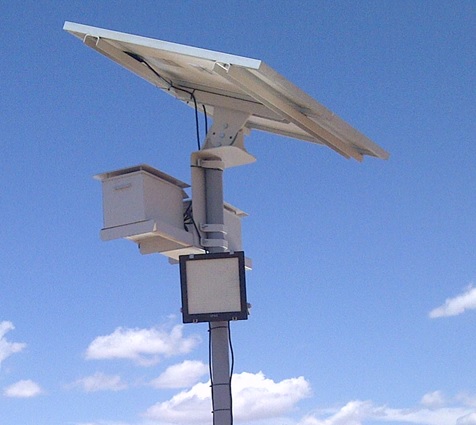

The Betta500 mounts on a 6-7 meter galvanized pole with a 76mm or 115mm thickness on the top. It can also be fitted on a wooden pole with a thickness of 155mm on top. The bracket system is available in stainless steel or mild steel and is E-coated and poweder coated against any form of corrosion.

The standard Betta500 configuration will function in most African countries – with more than 4 full sun hours per day - 2 x 80W solar panels, 4 x 22amphr lead crystal batteries, 1 x charging unit, 1 x LED light head, bracket set, 2 x battery boxes, complete wiring harness, 3 days of spare battery capacity available – all fasteners, bolts and nuts required are included.

Technical Information

Aspect	Technical Specification
Light
Light power consumption in watt	26 Watt
Light output in Lumen	2600
Average Lux over area	9
Lux on ground level at pole base	22 Lux
System Operating temperature	Minus 15 to +60 ℃
Suggested lamp height in meter	4.5 – 5.5m
Light distribution angle (total inclusive angle in degrees)	130
Quantity LED diodes on light board	483
Expected LED life in hours	30,000
Solar Panel
Solar Panel Watt	2 x 80W
Quantity of Solar Panels	2 panels
Panel Warranty	3 years
Expected panel life, at 20% of wattage degradation	25 years
Hail impact resistance	227g steel ball,1m high
Panel Operating temperature	Minus 40 to +90℃
Charge controller
Charge controller warranty	2 years
Charge controller function settings	Switch light on during night and off at night only
MPPT	Yes, 10% more energy efficient
Heat resistant	Yes, can handle heat of up to 90 degrees C
Harmonious function with lead crystal batteries	specifically designed to function with lead crystal battery technologies with its unique algorithms
Batteries
Quantity of Batteries	4
Battery Ah at 12 volt	22 Ah each
Nominal system voltage	12
Battery type	Deep cycle, lead crystal, sealed, maintenance free
Battery operating temperature	Minus 40 to +65 ℃
Battery warranty	2 years
Expected battery life in this application	7 to 10 years
Expected battery cycles at 33.33% DOD	2600
Expected battery cycles at 50% DOD	2000
Expected battery cycles at 80% DOD	950
Expected battery cycles at 100% DOD	400
Bracket solution
Bracket set material	3 CR12 Stainless steel, E-Coated and UV resistant powder coated or mild steel E-Coated and UV resistant powder coated
Bracket set adjustable to optimize panel efficiency	Yes
Adjustment angles	0 degrees to 90 degrees from horizontal – degrees engraved on metal works for easy installation
Bracket set galvanic corrosion protected	Yes. Passive insulation.
Battery box insulation	Yes
Designed to attach how many panels and battery boxes	2 panel and 2 solar panel
Fit to what type and size poles	Galvanised: 115mm and 76mm thick at top Wood: 155mm at the top Bolts, nuts – all fasteners included
Design features
Energy usage stored in batteries (days at 13 hours per night)	2.8
Full solar hours per day assumption for solution	4.5
Full sun hours needed to replenish one day’s consumption	2.35
Light on/off at dusk/dawn	Yes. Use panel output to activate switch
Over charge protection	Yes
Over discharge protection	Yes
Light will switch on/off automatically	Yes
System weight in kg, mounted on top of pole	95
Wind resistance area in square meter	1.5 m²at angle and 0,5 m² vertical face
