Solar power solutions

Betta Solar Street Light with fiberglass pole structure

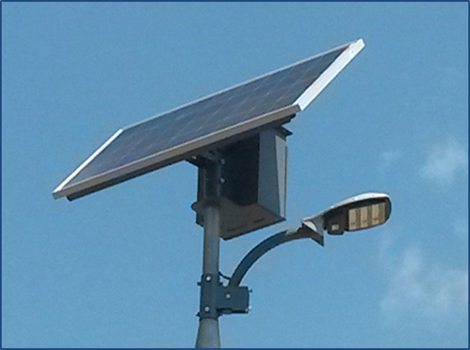

Betta Solar Street LED Light 26W

26W solar street light solution

Designed and Developed for typical off grid residential street lighting.





The 26W solar street light is ideal for streets with a higher vehicle density on the road and sidewalk.

Key features:

  1. Poles can be planted 50m apart from one another due to superior light distribution of LED light head.
  2. The Lead Crystal batteries will last for 8 – 10 years even with external heat of up to 50 degrees C.
  3. The Betta MPPT solar charge controller has got a 96% power efficiancy rating.
  4. All the steel brackets used are e-Coated and powder coated to combat corrosion.



Technical summary:

160W solar panel

100Ah Lead Crystal Battery

Betta MPPT charge controller

26W LED light head

Steel battery box and bracket

Note: the technical design is always determined by the weather conditions of the installed environment

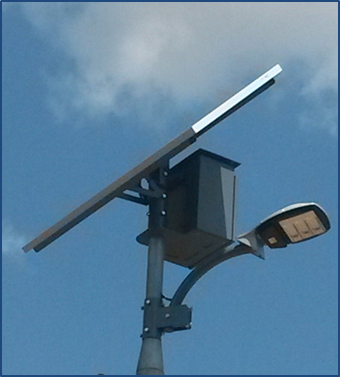

Betta Solar Street LED Light 18W

18W solar street light solution

Designed and Developed for typical off grid residential street lighting.





The 18W solar street light is ideal for streets with a lower vehicle density on the road.

Key features:

  1. Poles can be planted 40m apart from one another due to superior light distribution of LED light head.
  2. The Lead Crystal batteries will last for 8 – 10 years even with external heat of up to 50 degrees C.
  3. The Betta MPPT solar charge controller has got a 96% power efficiancy rating.
  4. All the steel brackets used are e-Coated and powder coated to combat corrosion.



Technical summary:

110W solar panel

70Ah Lead Crystal Battery

Betta MPPT charge controller

18W LED light head

Steel battery box and bracket

Note: the technical design is always determined by the weather conditions of the installed environment



Betta Street Light Presentation
